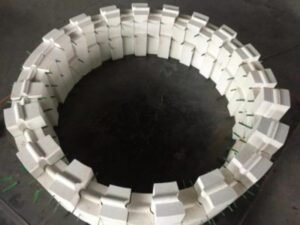

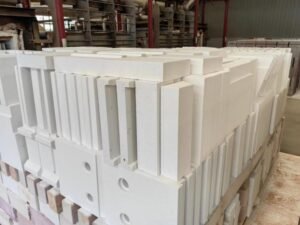

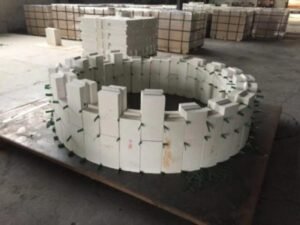

Corundum Brick
Corundum refractory bricks are refractory products with alumina content greater than 90% and corundum as the main crystal phase. High normal temperature compressive strength (up to 340MPa). High load softening start temperature (greater than 1700 ° C). Very good chemical stability, strong resistance to acidic or alkaline slag, metals and glass liquids. Thermal shock stability is related to its organizational structure.
Corundum bricks can be divided into sintered corundum fire brick and fused corundum brick. Sintered alumina and fused corundum can be used as raw materials, or alumina clinker with high Al2O3 / SiO2 ratio can be combined with sintered alumina and made by sintering. It can also be made of non-burning corundum brick with phosphoric acid or other binders.
Product Description

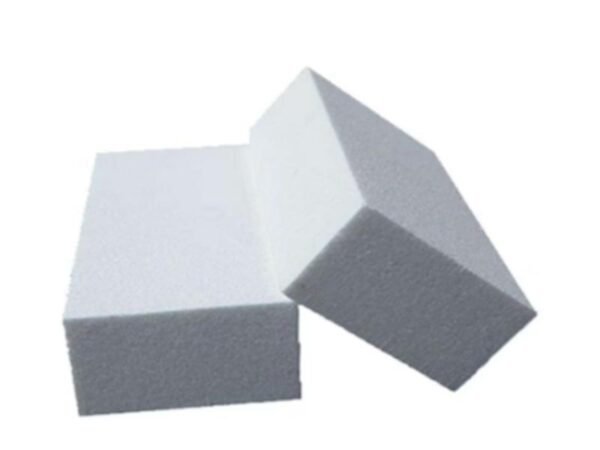

Description of Corundum Fire Brick
Corundum fire bricks are high-grade refractory products with α-Al₂O₃ (corundum crystals) as the main crystalline phase. Industry standards stipulate that the alumina content is ≥90%, making them the highest-grade alumina refractory materials, far superior to ordinary high-alumina refractory bricks.
Characteristics of Corundum Brick
Ultra-high refractoriness
Pure corundum melting point 2054℃, load softening temperature >1700℃, long-term safe operating temperature 1600～1800℃.
High strength and high wear resistance
Mohs hardness 9 (second only to diamond), room temperature compressive strength 80～340MPa, high-temperature load-bearing capacity, resistant to erosion and wear.
Excellent chemical stability
Resistant to acidic, neutral, and weakly alkaline slags;
Does not react with molten steel, molten glass, or non-ferrous metal melts, and is not easily contaminated in products;
Long-term stability in oxidizing and neutral atmospheres.
Dense and low porosity
Apparent porosity <1% for cast type, 3%～8% for sintered type, resistant to penetration and corrosion.
Application of Corundum Refractory Brick
Blast Furnace: Hearth, tuyere, slag line lining;
Steelmaking: Electric furnace hearth, ladle slag line, RH vacuum furnace, impact zone of continuous casting tundish;
Stainless Steel Smelting: High-purity corundum reduces inclusions in molten steel, improving steel quality.
Melting furnace walls, flow channels, risers, feed channels; resists melting of molten glass above 1500℃, reducing glass contamination defects.
Rotary kiln firing zone, tertiary air duct, high-temperature zone of cooler; chrome corundum bricks are used in alkaline conditions.
Coal gasification furnaces, synthetic ammonia conversion furnaces, ethylene cracking furnaces; resistant to high-temperature, reducing corrosive flue gas.
Muffle furnaces, pusher kilns, ceramic kiln shelves/saggers, aluminum electrolysis cells, waste incinerators, and laboratory high-temperature crucible furnaces.
Physical and Chemical Index
| Items | Ultra PurityCorundum brick | 99 Corundum brick | 90 Corundum brick | Corundum MulliteBrick |
| Al2O3 % | ≥99.3 | ≥ 98.5 | ≥ 90 | ≥80 |
| SiO2 % | ≤0.15 | ≤0.3 | ≤8.5 | ≤18.5 |
| Fe2O3 % | ≤0.1 | ≤0.2 | ≤0.2 | ≤0.3 |
| Bulk density g/cm3 | ≥3.25 | ≥3.25 | ≥3.1 | ≥2.9 |
| Apparent porosity % | ≤18 | ≤18 | ≤18 | ≤18 |
| Cold crushing strength MPa | ≥100 | ≥100 | ≥100 | ≥100 |
| Refractoriness under load(0.2Mpa,0.6%) | ≥1700 | ≥1700 | ≥1700 | ≥1700 |
| Reheating linear change rate(1600℃X 8h) | -0.2 | -0.2 | 0.2 | 0.2 |
| Thermal expansion %Tem.to 1300℃ | 8.1 | 8.1 | 8.1 | 7.6 |
Company Profile
About Ruitai Lianxin
Henan Ruitai Lianxin Refractory Materials Co., ltd is a modern R&D-centered refractories manufacturing enterprise integrated with refractories sales and marketing, furnace engineering construction, recycling and sales of waste refractories as well as refractory raw material, technology and goods import and export, and technical services.
Well-equipped and technologically advanced, ISO/QHSE-certified management underpins a product line of ordinary, medium and high-grade magnesia series brick, magnesia-chrome brick, magnesia-alumina spinel brick, magnesia-alumina- chrome basic brick, lightweight brick, clay brick, high alumina brick, corundum brick, zircon series brick, silicon carbide brick and insulation materials, monolithic castable, ramming mix, plastic, etc.
We manufacture more than 70 categories of refractory bricks with more than a thousand specifications and models, which are widely used in high-temperature kiln/furnace, non-ferrous metallurgical smelter, cement lime rotary kiln, glass-melting furnace, electric power, petrochemical hazard waste incinerator etc.

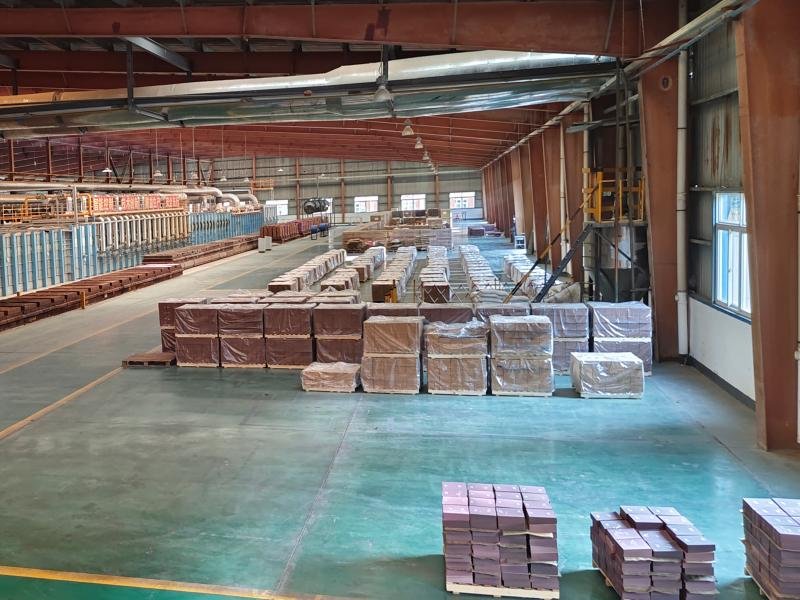

Factory Show
As a 20 refractory bricks manufacturer, we have our own factory, professional machinery and equipments, strong technical team, complete delivery process, perfect after-sales service.

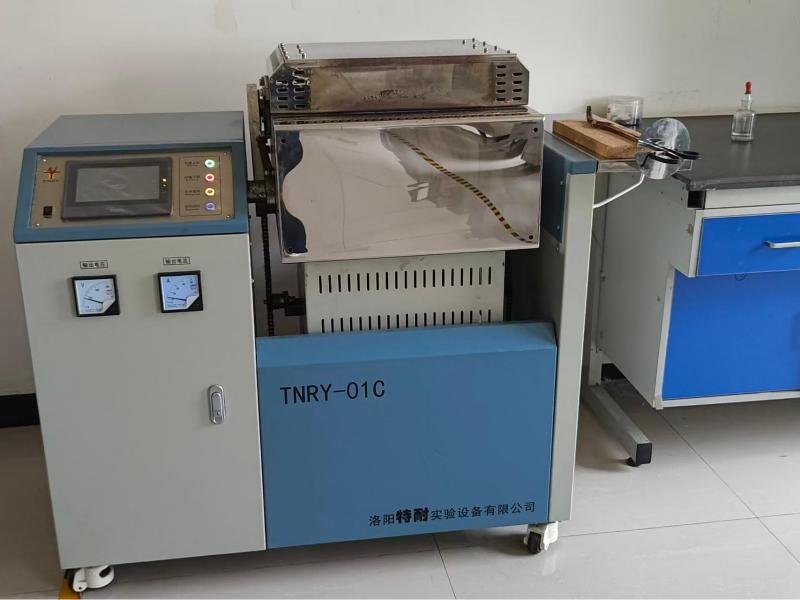

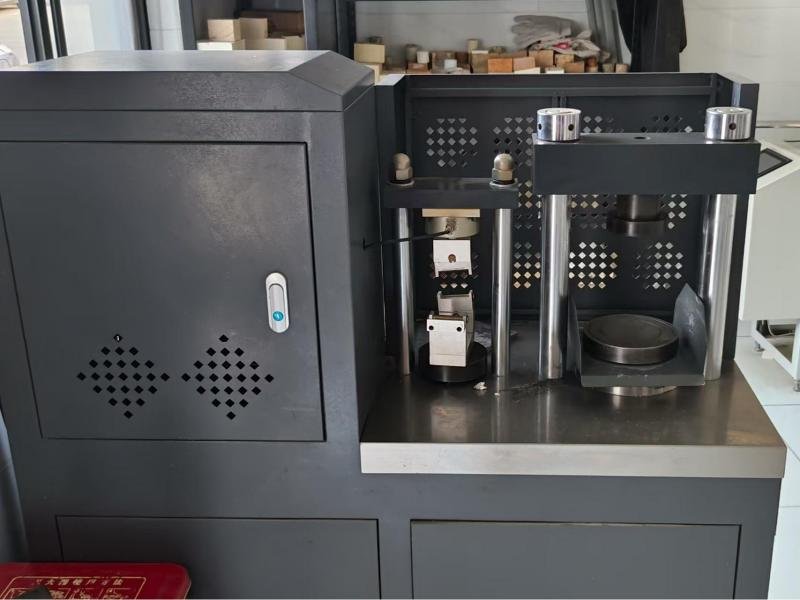

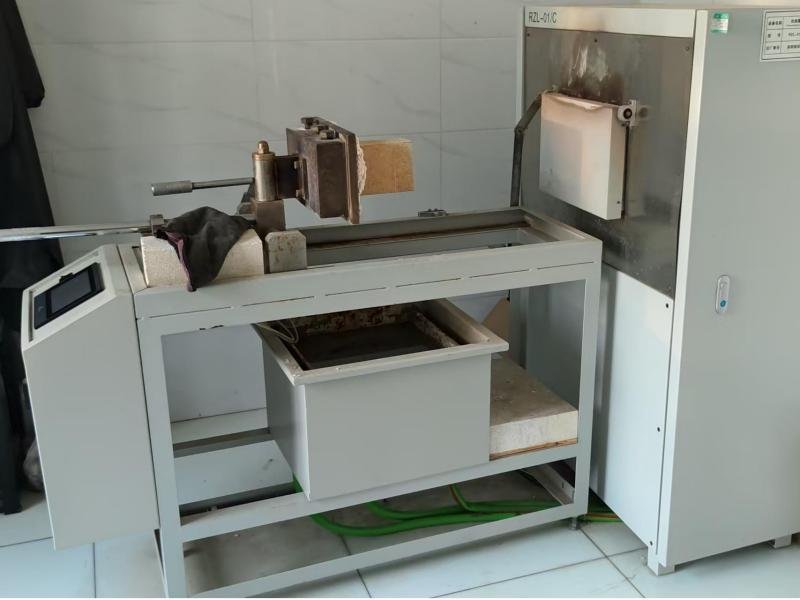

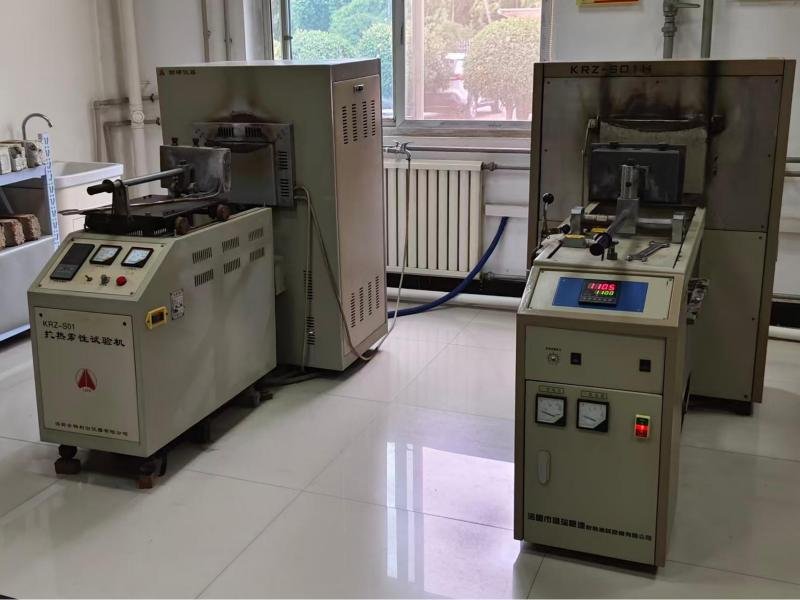

Test Equipment
We have innovative technology and advanced experimental equipment to ensure that every refractory material has the best quality and we are responsible for every customer.
Production Process
Ruitai Lianxin has a complete production process, from raw materials to molding, and then to finished refractory materials. Each step is operated and inspected by dedicated personnel to ensure the high quality of the products.

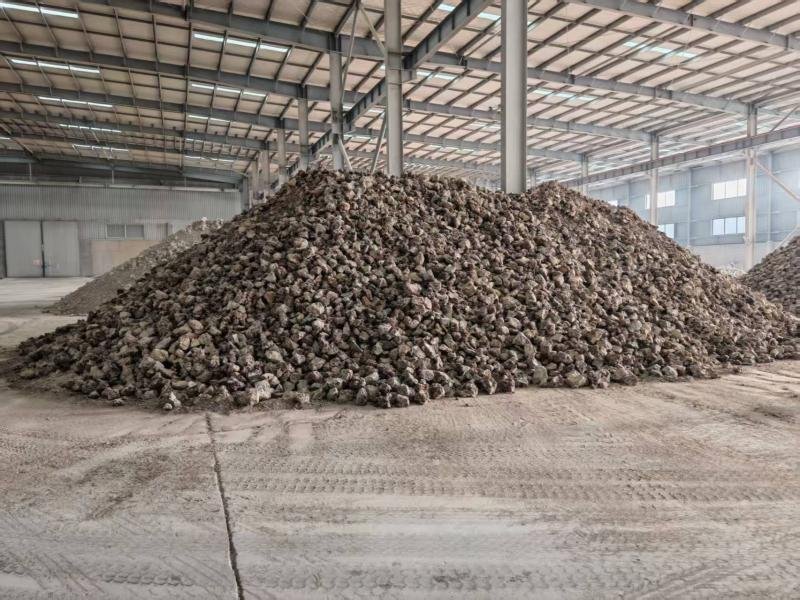

Raw Materials

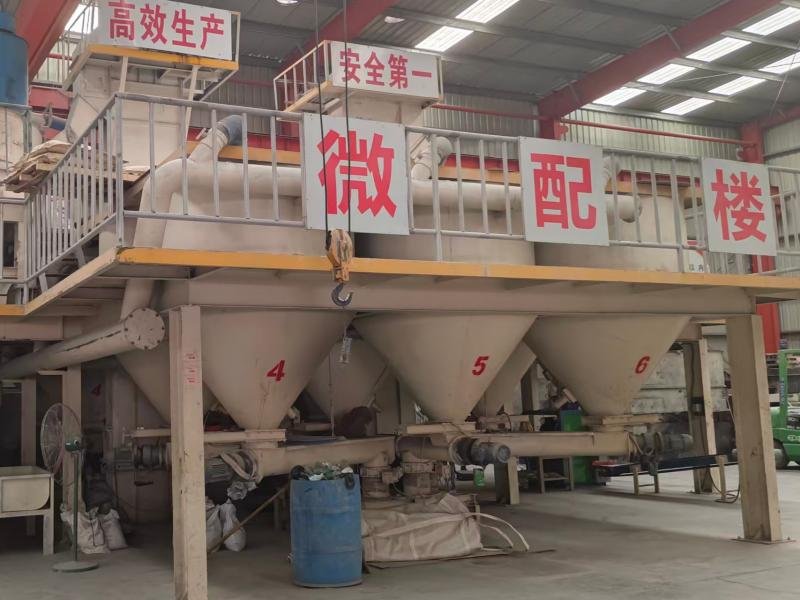

Mixing and Tempering

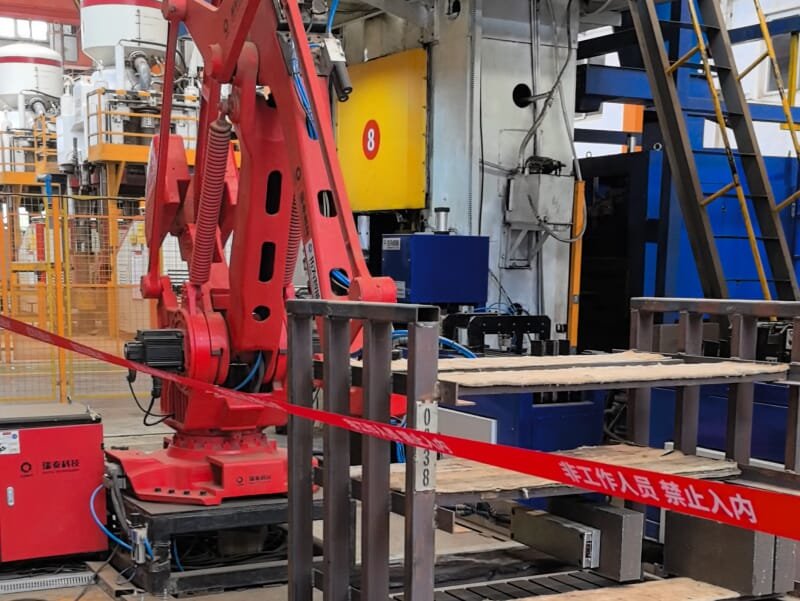

Forming

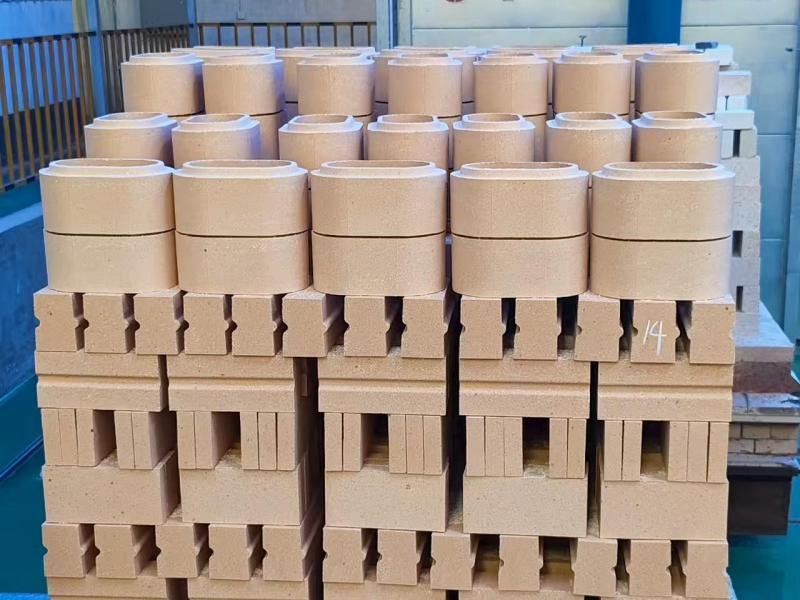

Drying

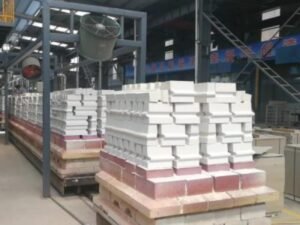

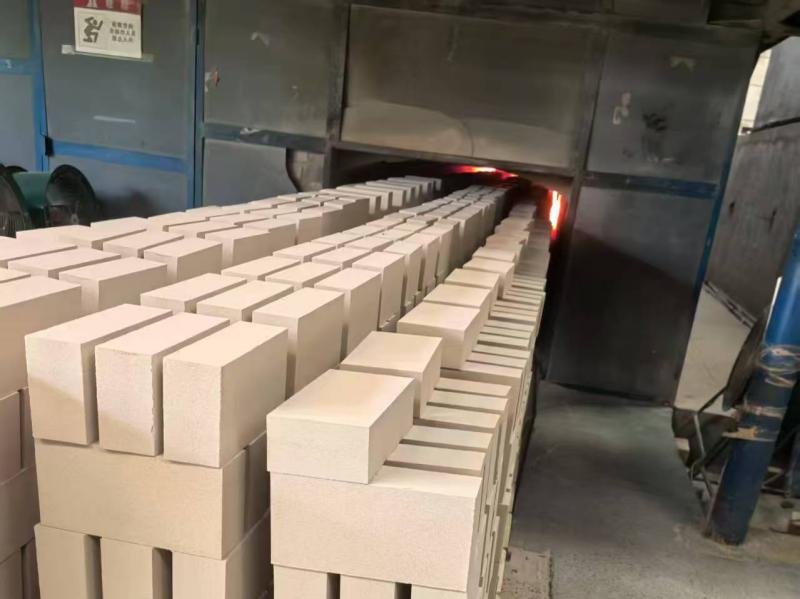

Sintering

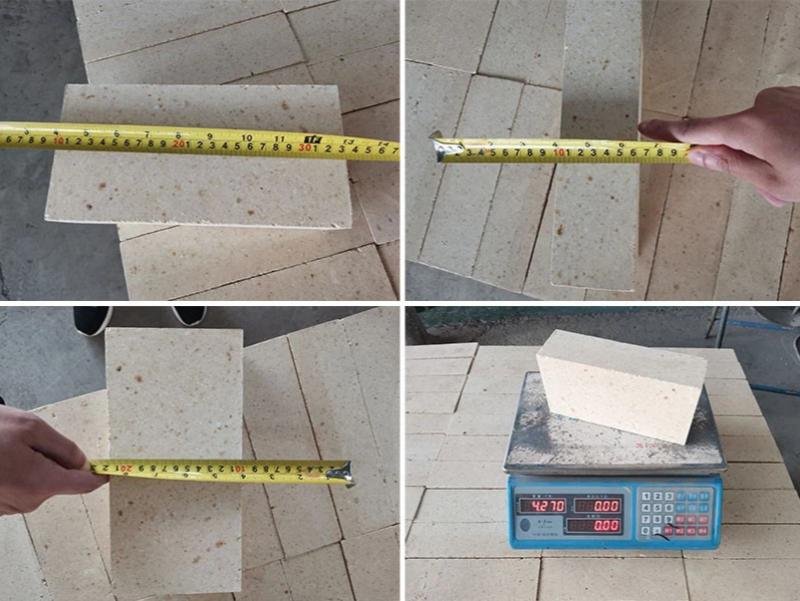

Selecting
Packing
Shipping
Quality Control
After the refractory bricks are manufactured, we need to undergo professional testing and inspection to ensure that each high-quality refractory brick is delivered to the customer, so that the customer can rest assured.

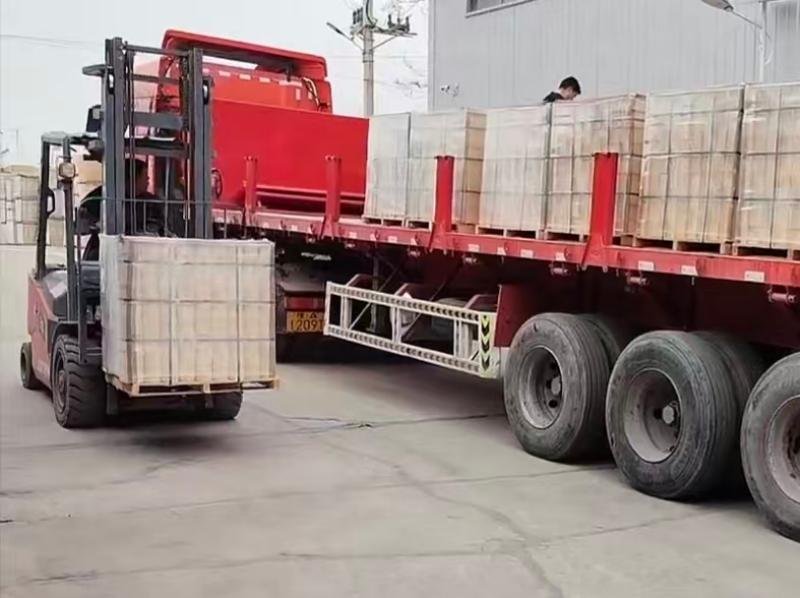

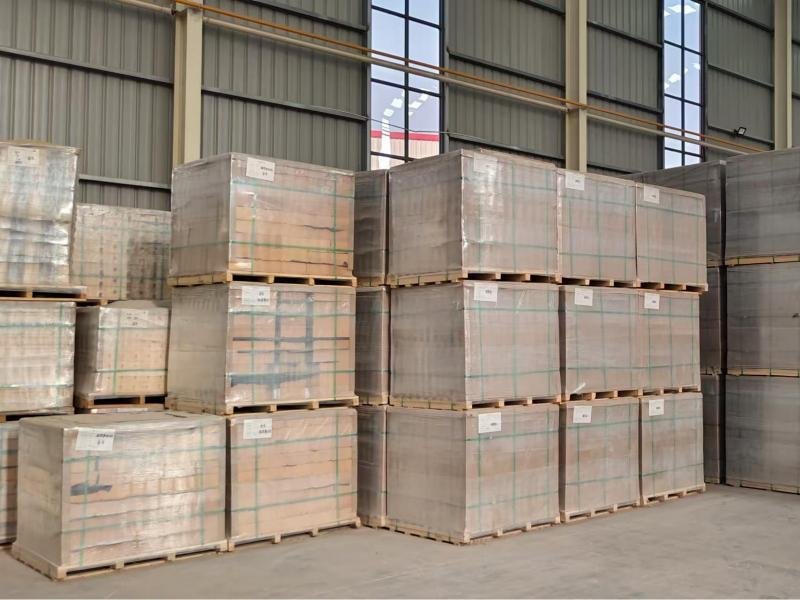

Packaging & Shipping
