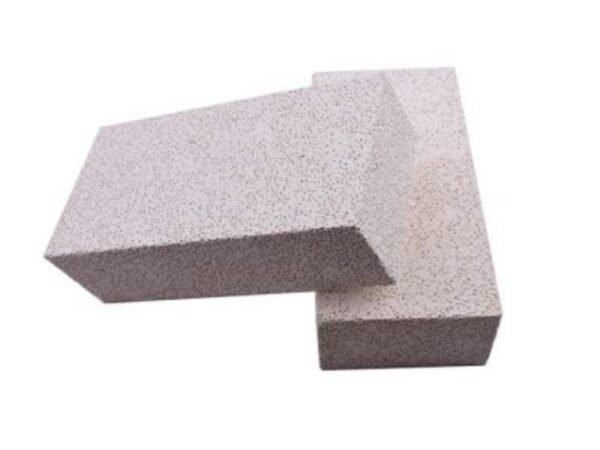

Lightweight Mullite Insulation Brick
Lightweight mullite insulation bricks generally refer to insulation refractory bricks with a density of 0.6-1.1g / cm3.
Due to the characteristics of low density, high porosity, less thermal conductivity, good thermal insulation, and certain compressive strength, light-weight mullite insulation bricks have been widely used in heat treatment equipment.
The use of mullite thermal insulation bricks with low thermal conductivity and small heat capacity as the structural material of the furnace body can largely save fuel consumption; At the same time, because the kiln can quickly heat up and cool, it can improve the production efficiency of the equipment; it can also reduce the weight of the furnace body and simplify the kiln Structure, improve product quality, reduce ambient temperature, improve working conditions.
Product Description
Description of Lightweight Mullite Insulation Brick
Lightweight mullite insulating bricks are a type of high-performance high-temperature insulation material, which can be understood as a special refractory brick that is both heat-resistant and energy-efficient.
It is a lightweight refractory product made with mullite (mainly composed of Al₂O₃-SiO₂) as the main crystalline phase through a special process. Due to its numerous uniform and tiny pores, it combines the high-temperature resistance of traditional refractory bricks with the low thermal conductivity of lightweight insulating materials.
Characteristics of Lightweight Mullite Insulation Brick
- High purity, less impurities
- Accurate size, arbitrary cutting
- Low heat capacity, low thermal conductivity
- Has excellent resistance to acid and alkaline slag
- High temperature resistance,direct contact with flame
- High strength, excellent high temperature volume stability
Application of Lightweight Mullite Insulation Brick
Lightweight mullite insulating bricks can be used as a working layer directly in contact with the flame, or as a backing layer behind other refractory materials, providing a composite heat insulation effect. It is widely used in various high-temperature kilns in industries such as petrochemicals, metallurgy, ceramics, building materials, and glass, including pyrolysis furnaces, hot blast stoves, tunnel kilns, and glass tank kilns.
Physical and Chemical Index
| Item | JM-23 | JM -26 | JM -28 | JM -30 | |
| Classification temperature (°C) | 1260 | 1430 | 1540 | 1650 | |
| Bulk density (g/cm3) | 0.6 | 0.8 | 0.9 | 1.0 | |
| Crushing strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 | |
| Modulus of rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 | |
| Permanent linear change (CT-30°CX24h)% | 0.5 | 0.4 | 0.5 | 0.9 | |
| Reversible thermal expansion at 1100 | 0.5 | 0.7 | 0.8 | 0.9 | |
| Thermal conductivity (W/m.k) | 400°C | 0.14 | 0.27 | 0.32 | 0.41 |
| 600°C | 0.16 | 0.29 | 0.34 | 0.43 | |
| 800°C | 0.18 | 0.31 | 0.36 | 0.44 | |
| 1000°C | 0.2 | 0.33 | 0.38 | 0.45 | |
| 1200°C | - | 0.35 | 0.41 | 0.47 | |
| Chemical Analysis (%) | Al2O3 | 37 | 58 | 67 | 73 |
| Fe2O3 | 0.7 | 0.7 | 0.6 | 0.5 | |
Company Profile
About Ruitai Lianxin
Henan Ruitai Lianxin Refractory Materials Co., ltd is a modern R&D-centered refractories manufacturing enterprise integrated with refractories sales and marketing, furnace engineering construction, recycling and sales of waste refractories as well as refractory raw material, technology and goods import and export, and technical services.
Well-equipped and technologically advanced, ISO/QHSE-certified management underpins a product line of ordinary, medium and high-grade magnesia series brick, magnesia-chrome brick, magnesia-alumina spinel brick, magnesia-alumina- chrome basic brick, lightweight insulation brick, clay fire brick, high alumina brick, corundum brick, silicon carbide brick and insulation materials, zirconia brick, monolithic castable, refractory ramming mix, refractory plastic castable, etc.
We manufacture more than 70 categories of refractory bricks with more than a thousand specifications and models, which are widely used in high-temperature kiln/furnace, non-ferrous metallurgical smelter, cement lime rotary kiln, glass-melting furnace, electric power, petrochemical hazard waste incinerator etc.
Factory Show
As a 20 refractory fire bricks manufacturer, we have our own factory, professional machinery and equipments, strong technical team, complete delivery process, perfect after-sales service.
Test Equipment
We have innovative technology and advanced experimental equipment to ensure that every fire brick has the best quality and we are responsible for every customer.
Production Process
We have a complete production process, from raw materials to molding, and then to finished products. Each step is operated and inspected by dedicated personnel to ensure the high quality of the fire bricks.
Raw Materials
Mixing and Tempering
Forming
Drying
Sintering
Selecting
Packing
Shipping
Quality Control
After the refractory bricks are manufactured, we need to undergo professional testing and inspection to ensure that each high-quality refractory brick is delivered to the customer, so that the customer can rest assured.
Packaging & Shipping
Our refractory fire bricks are delivered to customers in the shortest possible time by land, sea or air.
Company Advantages
Customer Cases
As a world-renowned exporter, we have expanded our business scope to the world, providing high quality firebricks to customers worldwide. We have gained loyal customers all over the world, reached cooperation again and again, and become the first choice of global customers.
Company Certification
We are a reliable manufacturer and supplier of refractory bricks, with a number of certificates and patents to protect your kiln, and our professional team of experienced engineers and technicians are committed to providing you with excellent service.
Cooperation Partners
As a refractory bricks source manufacturer for 20 years, we use the best materials and the most cutting-edge technology to carefully make fire bricks, our firebricks have all kinds of types to meet various application needs, has won many reliable cooperation partners.
Questions & Answers
Q1: Could I get a sample before placing an order?
A1: Yes. A sample as per your requirement can be prepared for approval.
Q2:How can I get your prompt quotation?
A2:We can give you reply with quotation quickly if you kindly send the inquiry with following factors: dimension (length*width*thickness), service temperature, application and quantity.
We’d be appreciated if you can also provide the density and content.
Q3: Do you have stocks?
A3: Yes, but only for regular size.
Q4: How do you deliver my orders?
A4: Our experts can recommend you the suitable way based on the quantity and your budget. Normally ,it is by sea.
Q5: I am a big buyer, can I get a competitive price?
A5: Yes, you will get our lowest price without quality compromise along with our professional service.As we are working with mainly players in Europe, Asia, America and Afraic.
Q6: What is your quality control?
A6: 1.Chemical inspection is performed during Raw material, production and finished products.
2.Physical test is performed for finished products.
Q7: Are you a manufacture or trader?
A7: We are truly a manufacturer of refractory brick, Ruitai Lianxin not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q8: Do you accept size and shape customization? Are the specifications accurate?
A8: Yes! We have a professional R&D team, and advanced QC inspection equipments to ensure the accurate size and shape for you.
