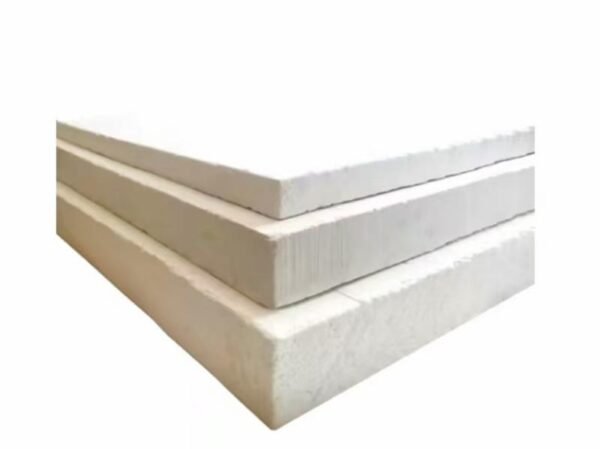

Ceramic Fiber Board
Ceramic fiber board provides a rigid solution for ceramic fiber insulation. The boards are manufactured through a wet forming process using alumina-silica fibers and binders. Standard board grades are standard, high purity, and zirconia. Boards are available in a variety of temperature ratings, dimensions, and custom vacuum formed shapes. The mixture of refractory fibers and binders, which have low organic content is vacuum processed into high temperature ceramic fiber board that imparts good mechanical strength even after heating. Ceramic Board is a refractory board which has low thermal conductivity and high tensile strength and excellent resistance against thermal shock and chemical attack. Upon initial use at specific temperature the organic binder burns and turns the board to brownish giving slight odor. Once the binder is burnt out it will be pure white and odorless.
Product Description
Description of Ceramic Fiber Board
Ceramic fiber board provides a rigid solution for ceramic fiber insulation. The boards are manufactured through a wet forming process using alumina-silica fibers and binders. Standard board grades are standard, high purity, and zirconia. Boards are available in a variety of temperature ratings, dimensions, and custom vacuum formed shapes. The mixture of refractory fibers and binders, which have low organic content is vacuum processed into high temperature ceramic fiber board that imparts good mechanical strength even after heating. Ceramic Board is a refractory board which has low thermal conductivity and high tensile strength and excellent resistance against thermal shock and chemical attack. Upon initial use at specific temperature the organic binder burns and turns the board to brownish giving slight odor. Once the binder is burnt out it will be pure white and odorless.
Characteristics of Ceramic Fiber Board
- Low heat storage
- Low thermal conductivity
- High rigidity and light weight
- Excellent thermal shock resistance
- Can be machined, cut and shaped easily
Application of Ceramic Fiber Board
- Industrial furnace wall lining
- High temperature pipe insulation material
- Oven, stove, boiler insulation lining
- High temperature electrical equipment thermal insulation
Physical and Chemical Index
| LNTX-1050B | LNTX-1260B | LNTX-1260HPB | LNTX-1430B | ||
| Permanent Heating Linear Change(%) | 950ºCX24h≤-4 | 1000ºCX24h≤-4 | 1100ºCX24h≤-4 | 1350ºCX24h≤-4 | |
| Thermal Conductivity(Average 500ºC)W/(m.k) | ≤0.165 | ||||
| Water Content(%) | ≤-1.5 | ||||
| Organic Content(%) | ≥-6 | ||||
| Density(Kg/M3) | 250~320 | 280~320 | 300~320 | 300~320 | |
| Al2O3 | ≥40 | ≥43 | 44-47 | ||
| Al2O3+SiO2 | ≥95 | ≥96 | ≥98 | ||
| Fe2O3 | ≤0.5 | ≤0.5 | ≤0.3 | ≤0.5 | |
| Na2O+K2O+Fe2O3 | ≤0.5 | ||||
| Thermal Conductivity(W/m.k) | 200ºC | 0.082 | 0.074 | 0.055 | 0.078 |
| 400ºC | 0.102 | 0.092 | 0.073 | 0.102 | |
| 500ºC | 0.110 | 0.103 | 0.086 | 0.116 | |
| 600ºC | 0.133 | 0.127 | 0.105 | 0.135 | |
| Cold Crushing Strength (Mpa) | 0.2 | 0.2 | 0.15-0.2 | 0.12 | |
| Product Specifications | Length: 900/1000/1200/2400mm; Width:500/600/1000/1200mm; Thickness:6~100mm All sizes can be customized made | ||||
Company Profile
Zhengzhou Lianxin High Temperature Advanced Materials Co., Ltd is a modern R&D-centered refractories manufacturing enterprise integrated with refractories sales and marketing, furnace engineering construction, recycling and sales of waste refractories as well as refractory raw material, technology and goods import and export, and technical services. Well-equipped and technologically advanced, ISO/QHSE-certified management underpins a product line of ordinary, medium and high-grade magnesia series brick, magnesia-chrome brick, magnesia-alumina spinel brick, magnesia-alumina- chrome basic brick, lightweight brick, clay brick, high alumina brick, corundum brick, silicon carbide brick and insulation materials, monolithic castable, ramming mix, plastic, etc. We manufacture more than 70 categories of refractory bricks with more than a thousand specifications and models, which are widely used in high-temperature kiln/furnace, non-ferrous metallurgical smelter, cement lime rotary kiln, glass-melting furnace, electric power, petrochemical hazard waste incinerator etc.

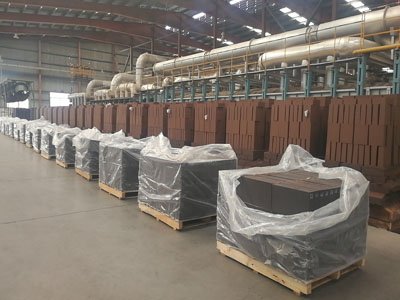

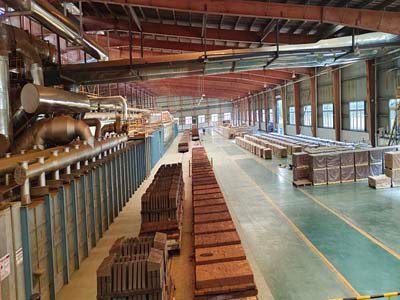

Factory Show
As a 20 refractory bricks manufacturer, we have our own factory, professional machinery and equipments, strong technical team, complete delivery process, perfect after-sales service.

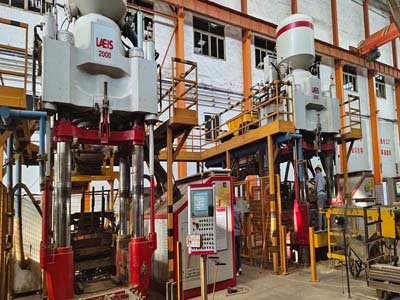

Test Equipment
We have innovative technology and advanced experimental equipment to ensure that every fire brick has the best quality and we are responsible for every customer.

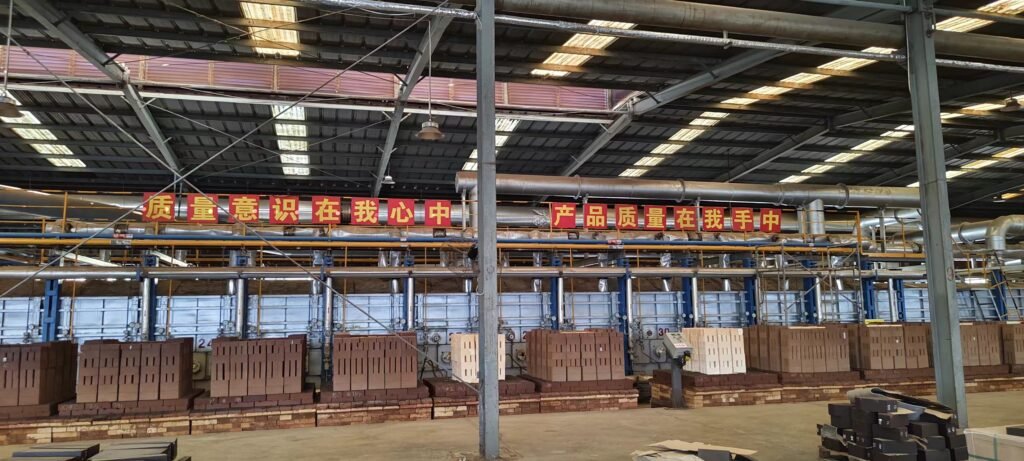

Production Line
As a refractory fire bricks manufacturer for more than 20 years, we have a complete product production line, ensuring that every step is carried out strictly in accordance with the procedures.

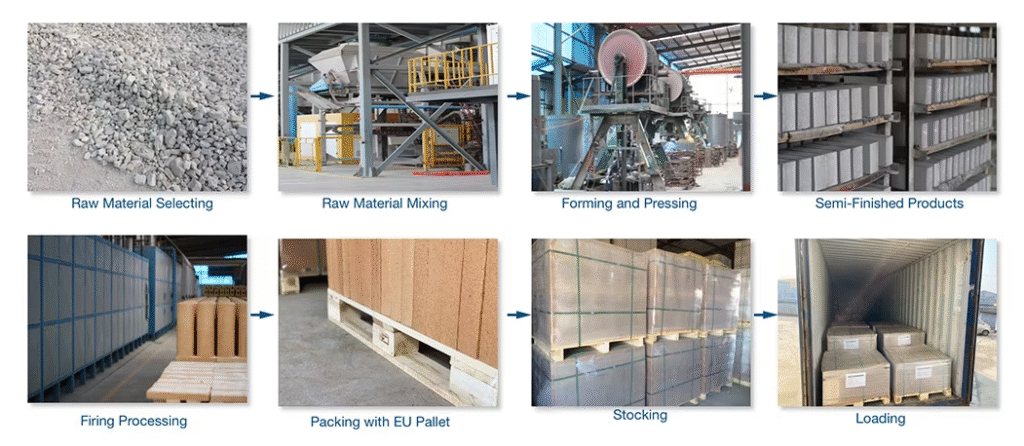

Production Process
We have a complete production process, from raw materials to molding, and then to finished products. Each step is operated and inspected by dedicated personnel to ensure the high quality of fire bricks.
Quality Control
After the refractory bricks are manufactured, we need to undergo professional testing and inspection to ensure that each high-quality refractory brick is delivered to the customer, so that the customer can rest assured.

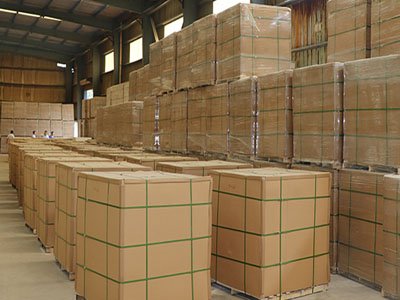

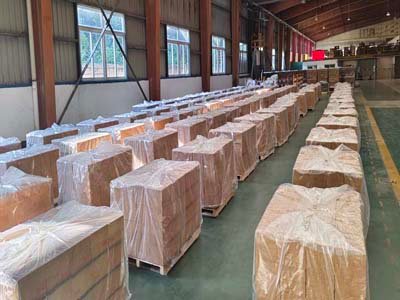

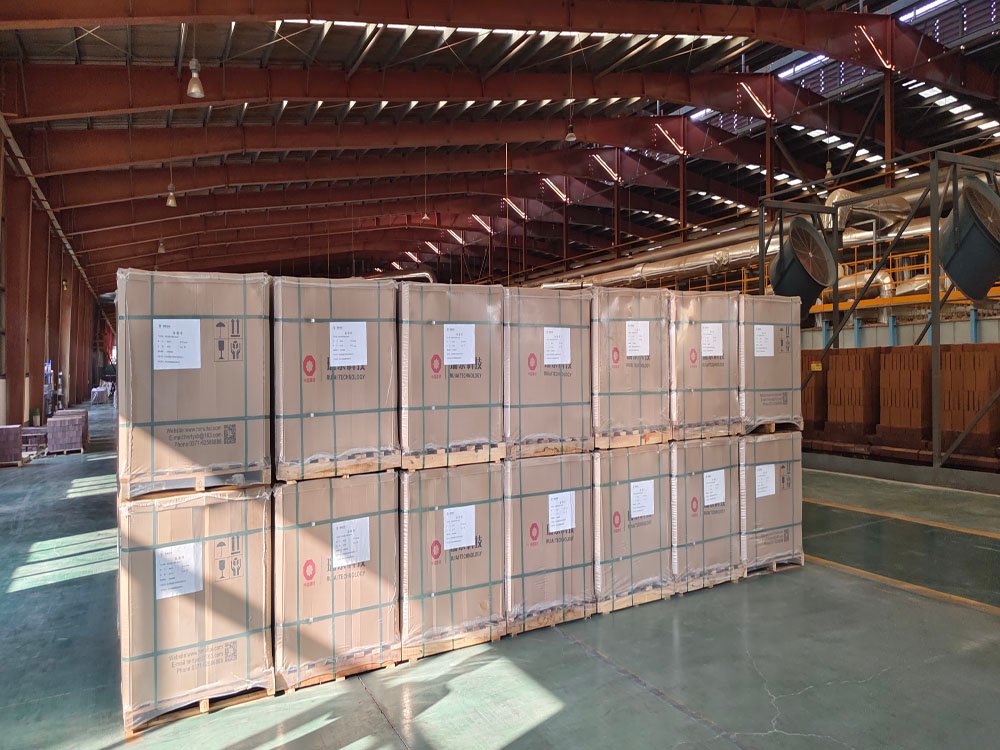

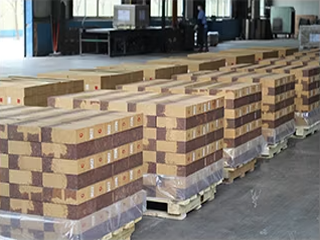

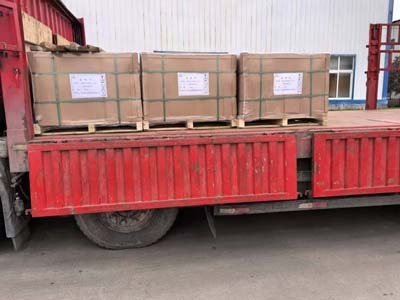

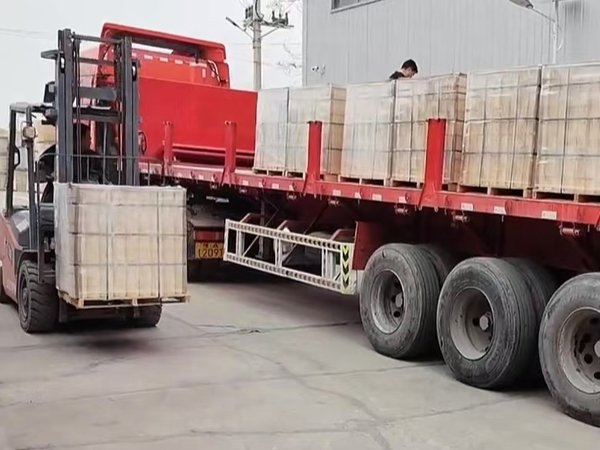

Packaging & Shipping
Our refractory fire bricks are delivered to customers in the shortest possible time by land, sea or air.
Company Advantages
Customer Cases
As a world-renowned exporter, we have expanded our business scope to the world, providing high quality firebricks to customers worldwide. We have gained loyal customers all over the world, reached cooperation again and again, and become the first choice of global customers.
Indian customer
Kazakhstan customer
Russian customer
Vietnamese customer
Syrian customer
Company Certification
We are a reliable manufacturer and supplier of refractory bricks, with a number of certificates and patents to protect your kiln, and our professional team of experienced engineers and technicians are committed to providing you with excellent service.
Cooperation Partners
As a fire bricks source manufacturer for 20 years, we use the best materials and the most cutting-edge technology to carefully make fire bricks, our firebricks have all kinds of types to meet various application needs, has won many reliable cooperation partners.
Questions & Answers
Q1: Could I get a sample before placing an order?
A1: Yes. A sample as per your requirement can be prepared for approval.
Q2:How can I get your prompt quotation?
A2:We can give you reply with quotation quickly if you kindly send the inquiry with following factors: dimension (length*width*thickness), service temperature, application and quantity.
We’d be appreciated if you can also provide the density and content.
Q3: Do you have stocks?
A3: Yes, but only for regular size.
Q4: How do you deliver my orders?
A4: Our experts can recommend you the suitable way based on the quantity and your budget. Normally ,it is by sea.
Q5: I am a big buyer, can I get a competitive price?
A5: Yes, you will get our lowest price without quality compromise along with our professional service.As we are working with mainly players in Europe, Asia, America and Afraic.
Q6: What is your quality control?
A6: 1.Chemical inspection is performed during Raw material, production and finished products.
2.Physical test is performed for finished products.
Q7: Are you a manufacture or trader?
A7: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q8: Do you accept size and shape customization? Are the specifications accurate?
A8: Yes! We have a professional R&D team, and advanced QC inspection equipments to ensure the accurate size and shape for you.
