Characteristics of lightweight refractory materials

Lightweight refractory materials refer to refractory materials with low density, which usually have good thermal isolation, low thermal conductivity and high thermal stability.

They are usually made of raw materials with porous structure. On the basis of refractory performance, they also have good thermal insulation performance. They are widely used in high-temperature equipment and processes that require insulation and heat preservation.

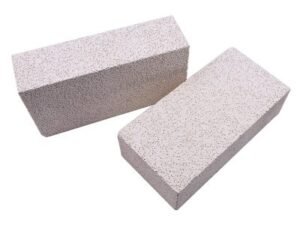

lightweight mullite brick
lightweight mullite brick

Main characteristics of lightweight refractory materials:

Low density and light weight: Lightweight refractory materials usually have low density, generally between 0.5-2.0 g/cm³. Its lightweight characteristics can reduce the burden of equipment and reduce transportation and construction costs when used in high-temperature environments.

Good thermal insulation: Due to its porous structure, lightweight refractory materials have very good thermal insulation, which can effectively prevent heat from being conducted outward, thereby reducing the loss of heat energy and saving energy. In some high-temperature equipment (such as furnace body, furnace lining, etc.), it can effectively keep the temperature in the furnace stable.

Low thermal conductivity: Lightweight refractory materials usually have low thermal conductivity, which means that they can effectively block heat transfer and avoid the high temperature outside the furnace body or equipment. This characteristic makes it widely used in places where insulation is required, such as kilns and heating furnaces.

High thermal shock stability:The raw materials commonly used in lightweight refractory materials, such as expanded perlite, lightweight clay, expanded glass, etc., have good thermal shock stability and can withstand thermal expansion and contraction caused by temperature changes. This makes it have a longer service life in working environments with large temperature fluctuations.

Good corrosion resistance: Many lightweight refractory materials, especially those with special formulas and raw materials, can maintain good performance in high-temperature environments where some corrosive gases or liquids exist, such as strong corrosion resistance when used in some chemical industries.

Good compressive strength: Although lightweight refractory materials have a low density, many lightweight refractory materials still have good compressive strength and can withstand certain external forces and pressures. They can usually maintain structural stability in high temperature environments and are not easy to deform.

Good high temperature resistance: Lightweight refractory materials usually have high refractoriness and can work stably for a long time under high temperature conditions. In many high-temperature equipment, they can withstand temperatures of thousands of degrees Celsius (the specific refractoriness depends on the type of material and its use).

Excellent sound insulation: Due to its porous structure, lightweight refractory materials have good sound insulation and can effectively reduce noise transmission, which has certain advantages in some industrial equipment, especially in metallurgy, ceramics and other industries.
